Inverter Decscription

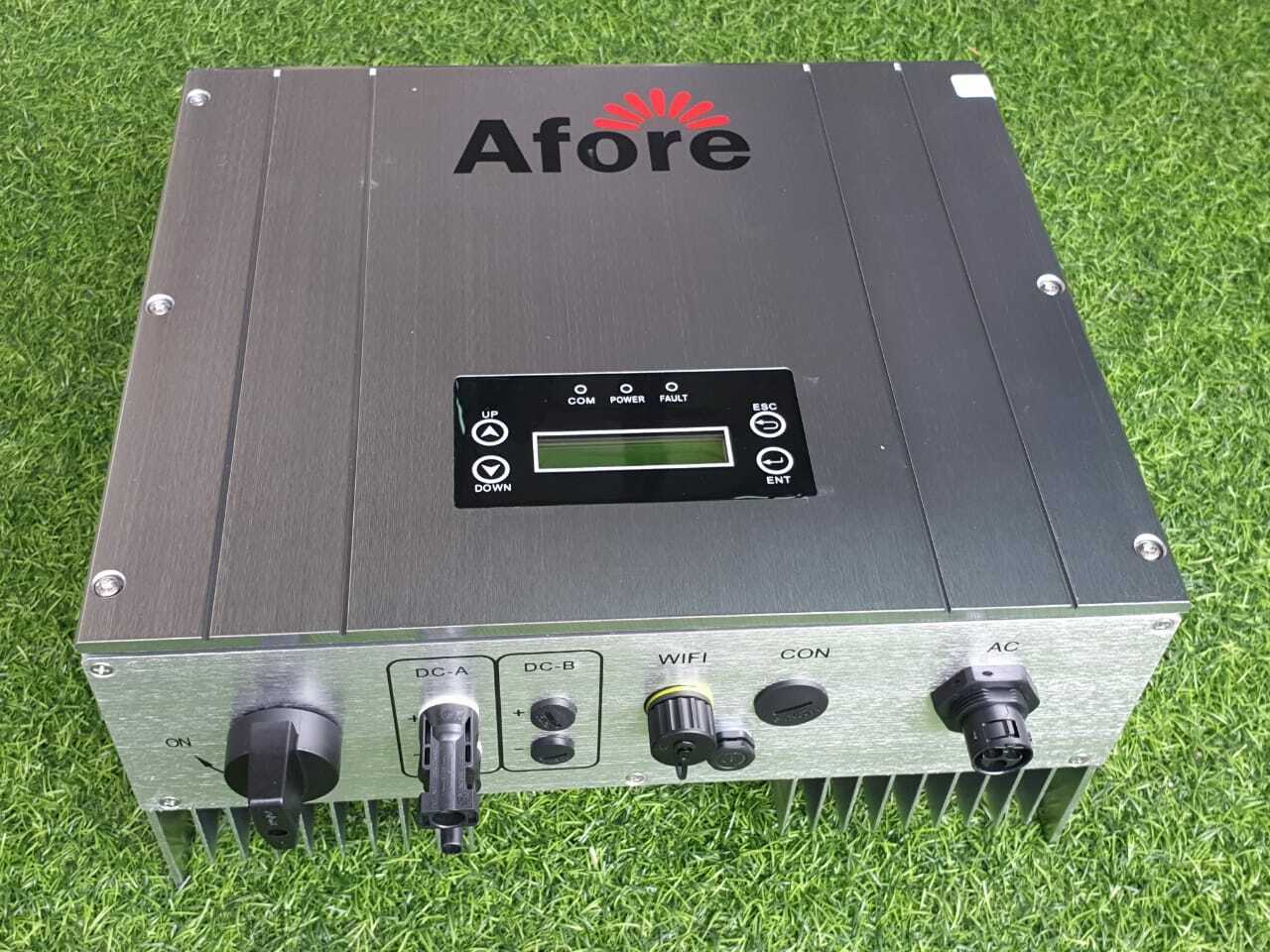

AFOREUK Series Grid Connected PV Inverter HNS3600TL-10
Model: HNS3600TL-10
Dimensions (H×W×D) [mm]: 394 x 300 x 130
Enclosure: IP65
Weight [kg]: 16.0000
Ambient Temperature Range: -20 ℃ ~ +55 ℃
Topology: Transformerless
Communication Interface: RS485
Night Consumption [W]: <1
Cooling Concept: Convection
Noise Emission [dB]: <28
Elevation: Up to 1000m without derating above sea level.
Input
Max. DC Power [W]: 3800
Max DC Voltage [V]: 550
MPPT Voltage Range [V]: 120 – 450
Max. DC Current [A]: 18
Number of MPPT Trackers/ Strings Per MPP Tracker: 1/2
Output
Power Connector: Single Phase
Max. AC Power [W]: 3600
Nominal AC Phase Voltage / Range [V]: 230 / AU:200~270 IT:196~253 UK:207~264
Nominal AC Frequency /Range [Hz]: 50/ AU:48.5~51.5 IT:47.5~51.5 UK:47~50.5
Max. AC Current [A]: 16
Nominal AC Current [A]: 16
Power Factor: >0.99
Output Current THD: <3%
Power Efficiency
Max. Efficiency/400VDC: 97%
Euro Efficiency/400VDC: 96.3%
MPPT Efficiency: >99%
Topology
Electromagnetic Compatibility: EN61000-6-1/6-3
Anti-Islanding Protection: Internal
Product performance
- High Efficiency
- Max. efficiency of 97.5%
- >99% MPPT efficiency
Reliability
- Island protection
- Enhanced DSP control system

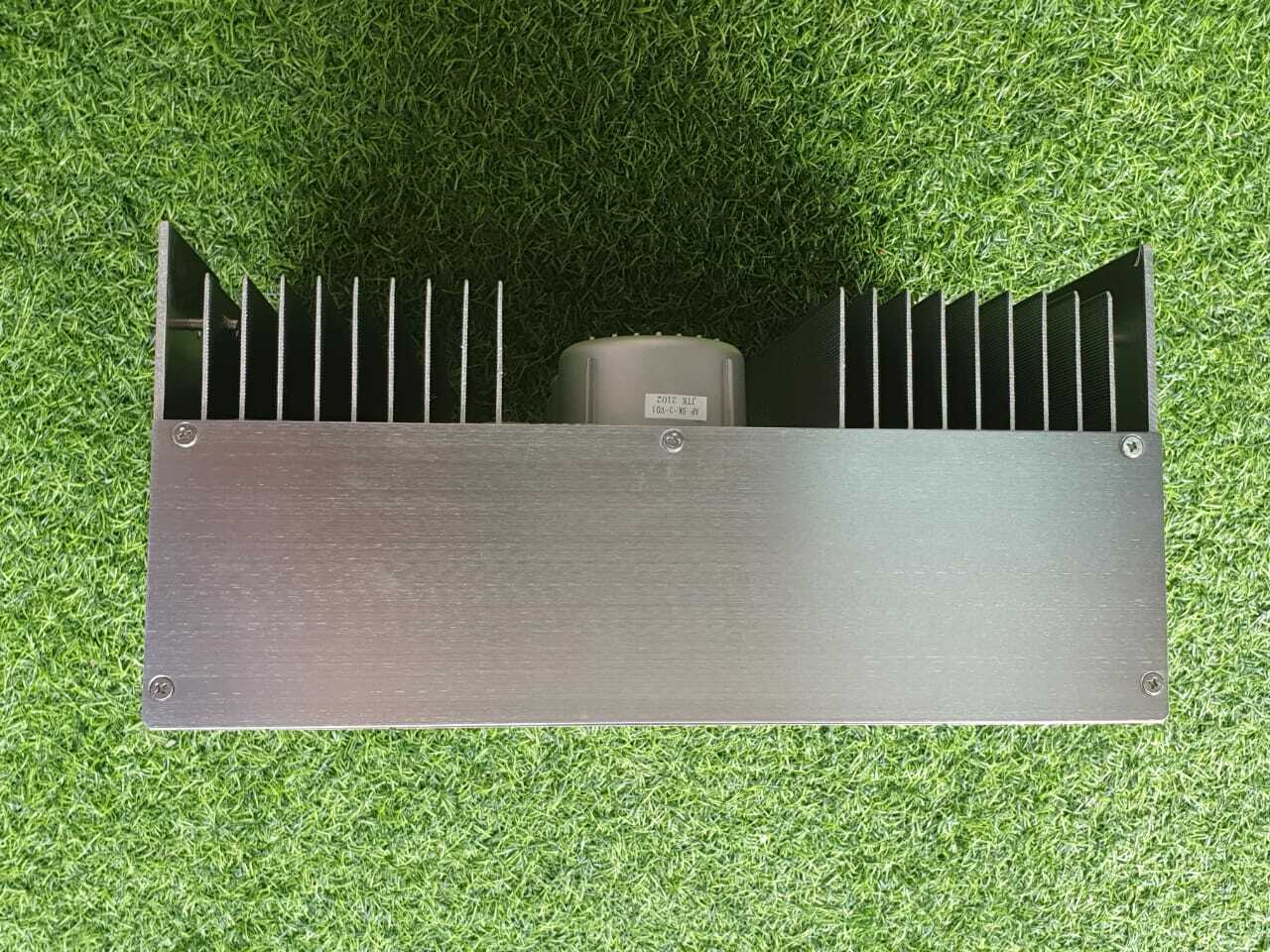

- Compact format, advanced thermal design(no fan required)
- Sealed aluminium enclosure for outdoor installation
- Enhanced temperature range from -20℃ to 55℃
- Ground-fault Circuit & Interrupters protection
Flexibility
- Transformerless design
- Plug-in connection for all DC input and AC output, easy field wiring
- IP 65 protection allows broad outdoor applications to save indoor installation space
- Full digital control, intelligent self protection
- Led indicator, user-friendly
